Product Summary
The PS2501L-2 is a optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor. It is lead bending type (Gull-wing) for surface mount.
Parametrics
PS2501L-2 absolute maximum ratings: 1)Diode: Reverse Voltage, VR: 6 V; Forward Current (DC), IF: 80 mA; Power Dissipation Derating: △PD/℃: 1.2 mW/℃; Power Dissipation, PD: 120 mW/ch; Peak Forward Current, IFP: 1 A; (2)Transistor: Collector to Emitter Voltage, VCEO: 80 V; Emitter to Collector Voltage, VECO: 7 V; Collector Current, IC: 50 mA/ch; Power Dissipation Derating, △PC/℃: 1.2 mW/℃; Power Dissipation, PC: 120 mW/ch; (3)Isolation Voltage, BV: 5 000 Vr.m.s; (4)Operating Ambient Temperature, TA: -55 to +100℃; (5)Storage Temperature, Tstg: -55 to +150℃.
Features
PS2501L-2 features: (1)High isolation voltage (BV = 5 000 Vr.m.s.); (2)High collector to emitter voltage (VCEO = 80 V); (3)High-speed switching (tr = 3 ms TYP., tf = 5 ms TYP.).

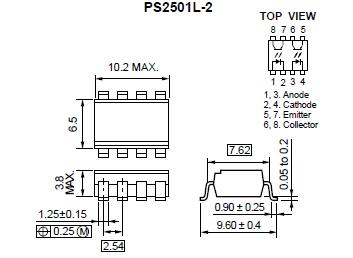

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS2501L-2-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 2-Ch |
Data Sheet |
Negotiable |
|
||||
|
PS2501L-2-E3-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 2-Ch |
Data Sheet |
Negotiable |
|
||||
|
PS2501L-2-E4-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
Negotiable |
|
||||
 |
PS2501L-2-E4 |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
Negotiable |
|
||||
|
PS2501L-2 |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 2-Ch |
Data Sheet |
Negotiable |
|
||||
