Product Summary
The AOZ1016AI is a high efficiency, simple to use, 2A buck regulator. The AOZ1016AI works from a 4.5V to 16V input voltage range, and provides up to 2A of continuous output current with an output voltage adjustable down to 0.8V.
Parametrics
Absolute maximum ratings: (1)Supply Voltage (VIN): 18V; (2)LX to AGND: -0.7V to VIN+0.3V; (3)EN to AGND: -0.3V to VIN+0.3V; (4)FB to AGND: -0.3V to 6V; (5)COMP to AGND: -0.3V to 6V; (6)PGND to AGND: -0.3V to +0.3V; (7)Junction Temperature: (TJ) +150℃; (8)Storage Temperature: (TS): -65℃ to +150℃; (9)ESD Rating: 2kV.
Features
Features: (1)4.5V to 16V operating input voltage range; (2)130mΩ internal PFET switch for high efficiency: up to 95%; (3)Internal Schottky Diode; (4)Internal soft start; (5)Output voltage adjustable to 0.8V; (6)2A continuous output current; (7)Fixed 500kHz PWM operation; (8)Cycle-by-cycle current limit; (9)Short-circuit protection; (10)Under voltage lockout; (11)Output over voltage protection; (12)Thermal shutdown; (13)Small size SO-8 package.

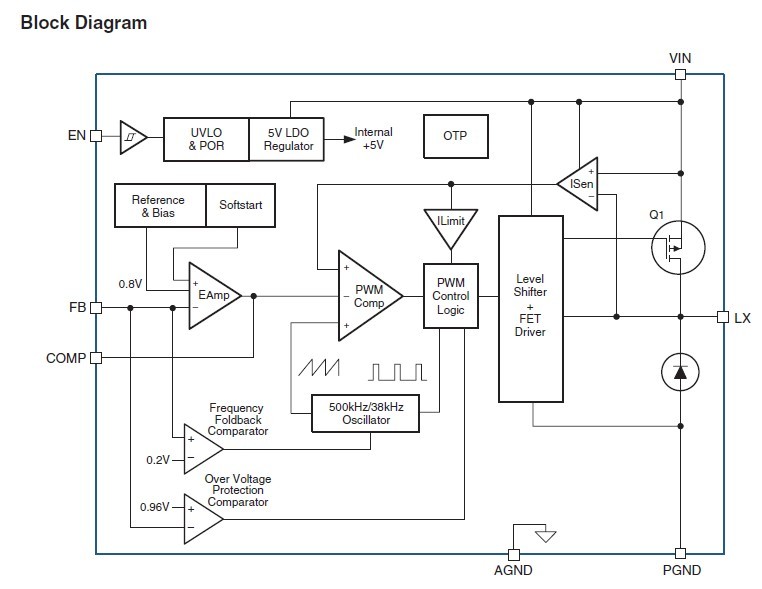

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AOZ1016AI |
|
IC REG BUCK ADJ 2A 8SOIC |
Data Sheet |
Negotiable |
|
||||||
|
AOZ1016AIL |
|
IC REG BUCK ADJ 2A 8SOIC |
Data Sheet |
|
|
||||||
